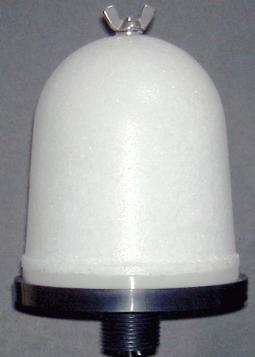

Diffusing pipe×Diffuser =Double diffuser ultra micro bubble full aeration
About the product
Ultra micro bubbles come through the aeration tank, enabling a even agitation without the rotational flow and thus, half of original air flow supply.Air flow supplier can be smaller, and energy saving.
The ultra micro bubbles will have more contacting surface and time, it gives twice the oxygen and dissolution efficiency.
Characteristics
1) Great operation efficiency
Bubbles produced are smaller by porous P.P. sintered resin material2) Less clogging
Equipped with a float type check valve, preventing back flow when blower stops.3) Less motor pressure
Less pressure loss.4) Corrosion resistant
The plastic under the main part prevents rusting.5) Adjustable mounting piece size
The original caliber is 1 centimeter, but with an adjusting socket, a 3/4 inch can also be mounted.6) Mounting direction
Upward mounting makes the operation easier.7) Features
More oxygen supply efficiency with smaller bubbles from diffuser pipes in addition to the same normal size bubble.Specifications
| Type | HD-130 | HD-130 |
|---|---|---|
| Outer dimention | Dome type 130Φ×190H | Dome type 130Φ×190H |
| Average pore size | 20μ | 150μ |
| Porosity | 40～41 | 50～51 |
| Average bubble size | 2Φ | 2～10Φ |
| Foaming surface size | 500㎠ | 500㎠ |
| Air flow rate | 50～150ℓ/M | 200～300ℓ/M |
| Product weight | 510g | 520g |
| Foaming part material | P.P | P.P |
| Main part material | P.P. resin | P.P. resin |
| Oxygen dissolution rate | 15～20％ | 10～15％ |
| Pressure loss | Without orifice100Aq | Without orifice50Aq |
